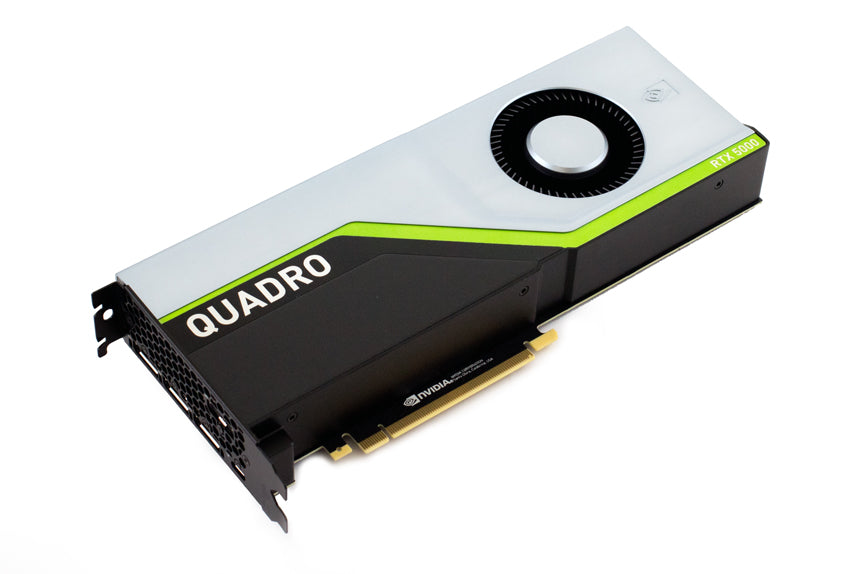

Nvidia Quadro RTX 5000 16GB GDDR6 699-5G180-0500-601 PCIe 3.0 Professional GPU

Nvidia Quadro RTX 5000 16GB GDDR6 Professional Graphics Card - 699-5G180-0500-601

The Nvidia Quadro RTX 5000 is a professional-grade GPU built on the Turing architecture, delivering real-time ray tracing, AI-accelerated workflows, and 16GB of high-bandwidth GDDR6 memory. Designed for demanding workstation applications including 3D rendering, CAD, simulation, and video production, it combines exceptional compute performance with enterprise-class reliability.

GPU Specifications

• Part Number: 699-5G180-0500-601
• Model: Nvidia Quadro RTX 5000
• GPU Architecture: Turing (TU104)
• CUDA Cores: 3,072
• RT Cores: 48 (2nd Gen)
• Tensor Cores: 384 (3rd Gen)
• Memory: 16 GB GDDR6
• Memory Bandwidth: 448 GB/s
• Memory Interface: 256-bit

Performance

• Single Precision (FP32): 11.2 TFLOPS
• RT Performance: 57 TFLOPS
• Tensor Performance: 89.2 TOPS
• NVLink Support: Yes (multi-GPU, up to 2 GPUs)

Display & Connectivity

• Interface: PCI Express 3.0 x16
• Display Outputs: 4 x DisplayPort 1.4 + 1 x USB-C (VirtualLink)
• Max Resolution: 7680 x 4320 (8K) per display
• Max Simultaneous Displays: 4
• VR Ready: Yes (VirtualLink)

Physical Specifications

• Form Factor: Full-height, dual-slot
• Cooling: Active (blower-style fan)
• Power Connectors: 1 x 6-pin + 1 x 8-pin PCIe
• TDP: 265W
• Recommended PSU: 650W or greater

Software & API Support

• Nvidia RTX platform (ray tracing, DLSS, AI)
• OpenGL 4.6, DirectX 12, Vulkan 1.1
• CUDA 7.5+, OpenCL 1.2
• Nvidia vGPU software support

Regulatory & Compliance

• FCC, CE, UL certified
• RoHS compliant
